Collection: CONNECTOR

Clean Connections Without the Soldering Iron

A LED strip light installation is only as reliable as its connections. Poor or inconsistent electrical joints cause flickering, dead sections, and premature failure — often at the most inconvenient point in a reel. Our solderless connector range eliminates the need for soldering while providing secure, low-resistance connections that maintain consistent brightness from fixture to fixture.

Connector Types Available

• PCB-to-PCB gapless connectors — join two strip ends with zero gap for continuous light lines

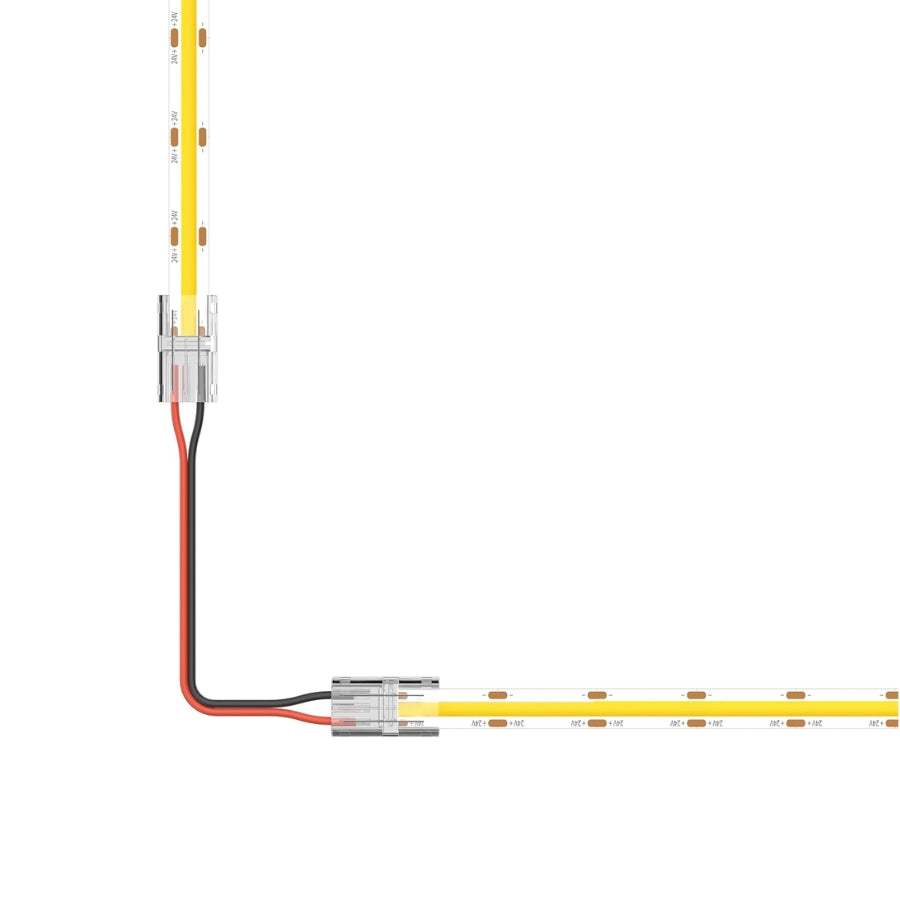

• Strip-to-wire connectors — connect LED strip to lead wire for driver or controller wiring

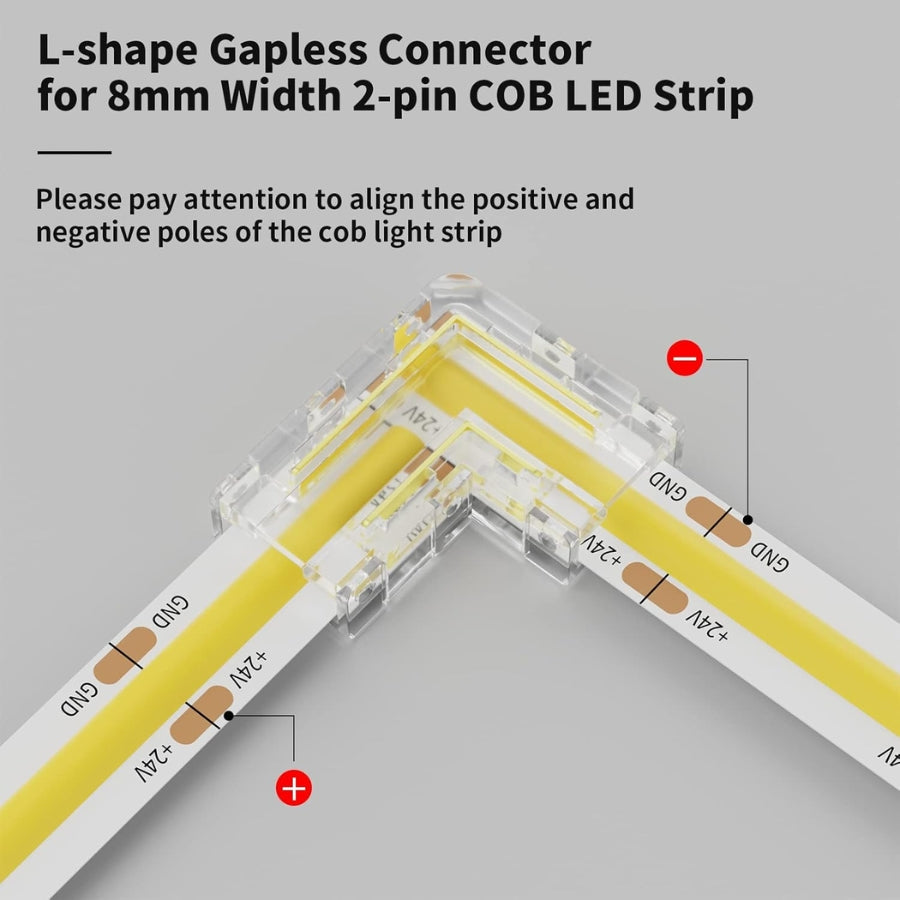

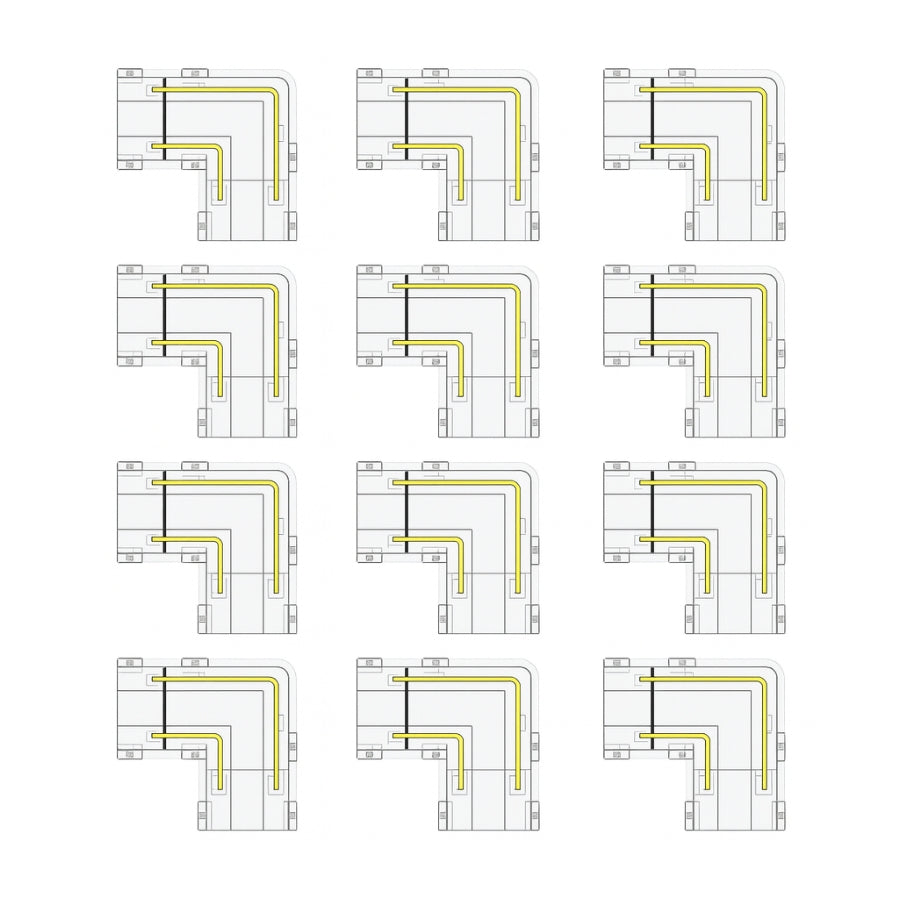

• L-shape corner connectors — turn 90° corners cleanly without cutting and rejoining

• T-shape connectors — branch a single strip run into two directions

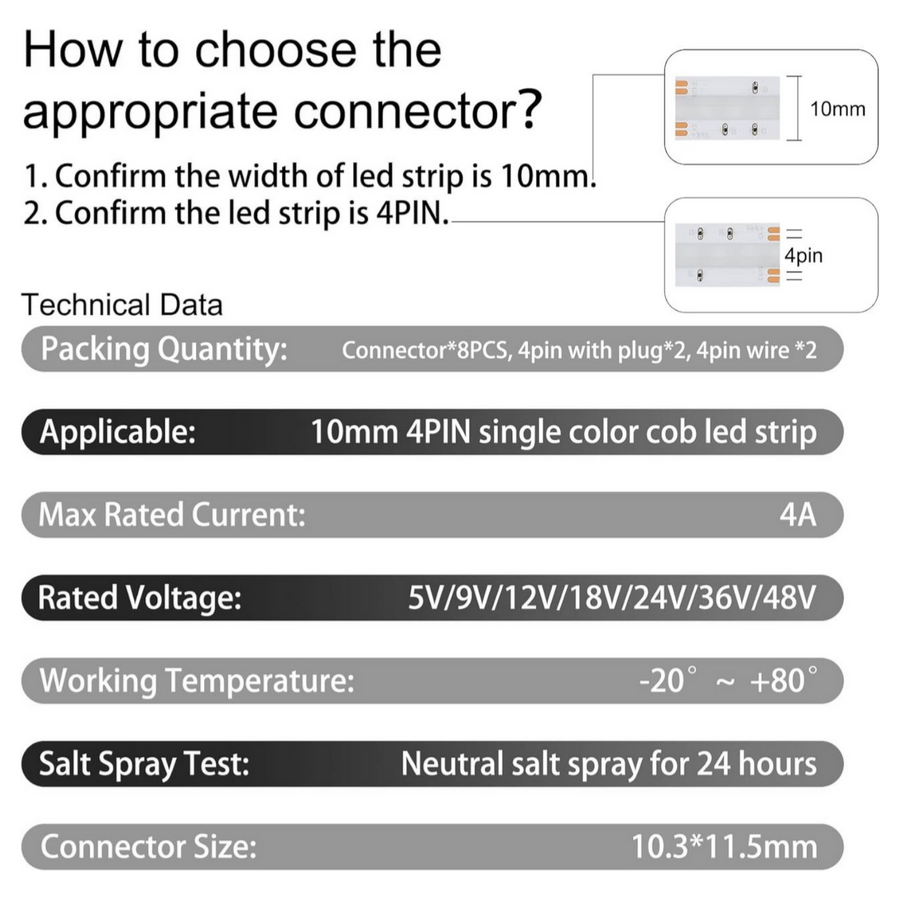

Compatibility

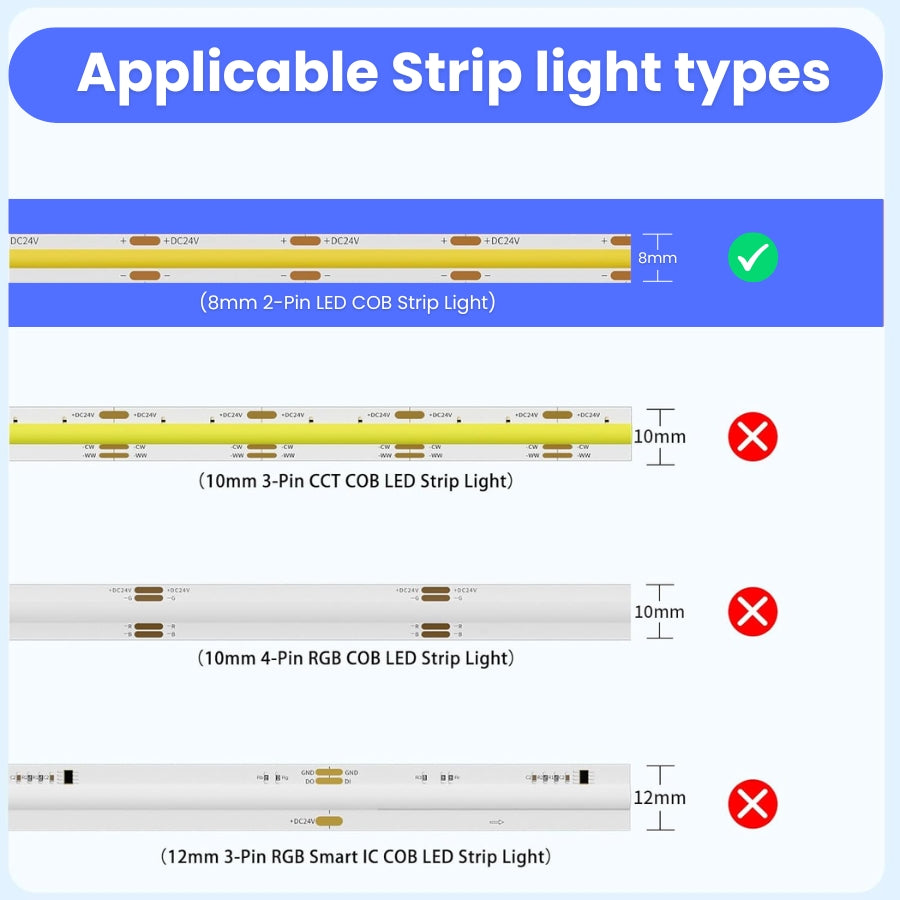

• 8mm and 10mm COB strip widths

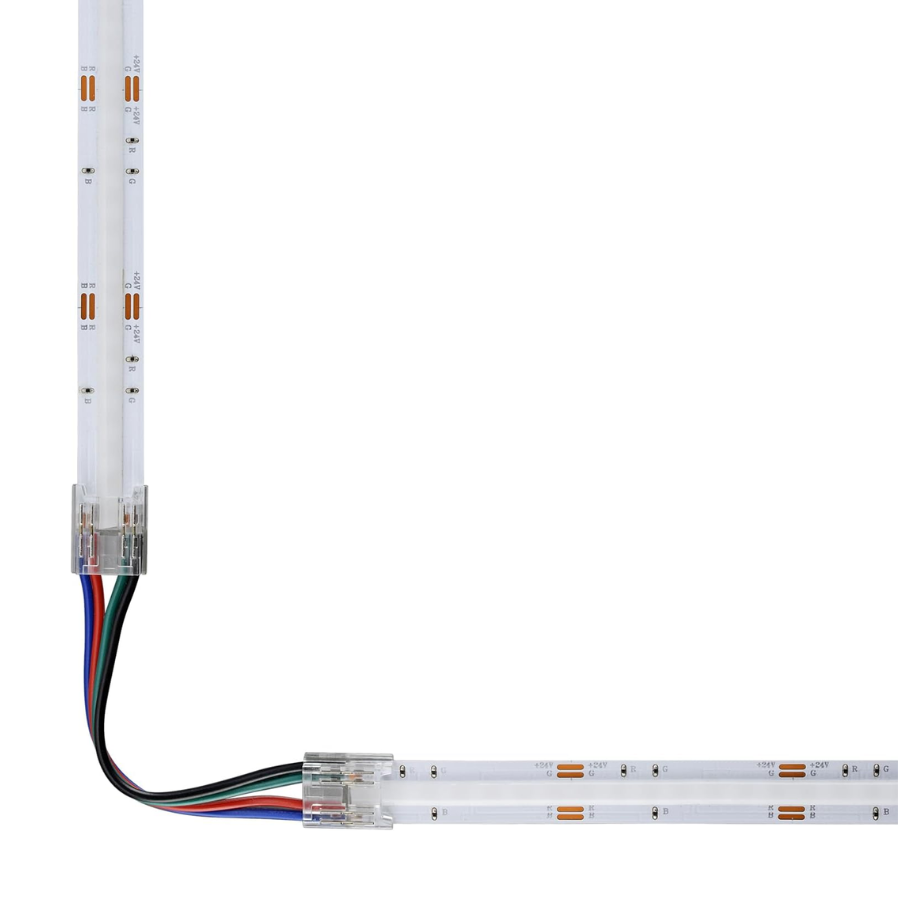

• 2-pin single color, 3-pin CCT tunable, and 4-pin RGB configurations

• Rated for 4A continuous current

• Voltage range: 5V–24V DC

• CE certified

Installation Note

For best results, ensure strip cut points align with the designated cut marks on the PCB before connecting. Misaligned cuts reduce contact surface area and can cause intermittent connection issues. Our connectors are designed for tool-free installation — no crimping tools required.
